IP2000 Partical Discharge Monitoring System
IP2000 is fully automatic on-line monitoring motor for internal partial discharge of the effective device.Device accurate effectively record the activities of partial discharge internal motor trend, the PD put strength to users set warning or alarm value, the device can be triggered alarm institution, and to put a fingerprint match for further analysis, to provide reference for the maintenance of extremely opinion. This device adopts permanent installation RFCT sensor or RTD coupling sensors to coupling internal PD . In the past 10 years, the device in the home and abroad including electric power, metallurgy, petrochemical, steel, shipping etc widely used, and achieved good application effect.IP2000 by RS485 communication system, and maximum way 32 set of system to RS 485 bus way connected. In addition, IP2000 provide system software also supports remote control and real-time display of partial discharge amount and features of the waveform.
• RFCT and RTD sensors can be chosen
• The host can pick up 15 road sensors
• Big size LED display
• 485 industrial communication interface
• The temperature humidity auxiliary
• Real-time continuous online monitoring and automatic storage data
• Electric motor and found the generator, and abnormal state provide early warning
• Improve equipment use efficiency, reduce maintenance costs
• Great capacity data storage management
• More single point alarm Settings
• Single point curve inquires history
• Sensor group intelligent monitoring
• Based on the Windows platform
• Fully compatible
• Strong statements processing functions
• The software also have analysis, diagnosis and press year, month, day data management function

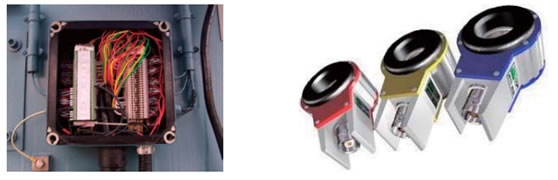

RTD and RFCT Sensors
