RBM Motor Fault Detecting System

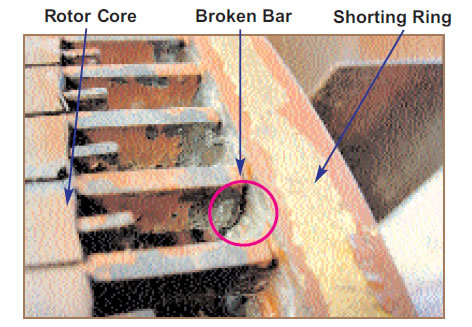

RBM is a portable, hand-held tester that is used for on-line testing of AC induction motors. It will detect cracked or broken rotor bars, porosity (cast rotors) and excessive air gap eccentricity. The test is fast and simple and the results are provided immediately. No expert interpretation is required.

General

•   Application to induction motors, >50 Hp
      •   QVGA colour LCD display, 320x240
      •   Battery operated with built in charger
      •   4 hour continuous battery operating time
      •   Communication via serial RS-232 port
      •   Software compatible with Windows 98 or higher
      •   Data storage for up to 29 motors

Operating Environment

• Continuous operating ambient temperature:10 °C to 50 °C

Enclosure

•   Metal frame with shock resistant rubber casing
      •   Weight: 2.2 kg (5 lbs)
      •   Size: 31.5cm x 15cm x 5.6cm (12.5" x 6" x 2.5")

Data Acquisition

• Standard acquisition time: 110 sec. · Current spectrum plots Unique features

Unique features

•   On-the-spot diagnosis
      •   Automatic slip prediction
      •   Advanced algorithms for identifiying and rejecting current components introduced by mechanical           phenomena to avoid mis-diagnosis of healthy rotor windings
      •   Diagnostic capability expandable with additional
